350 millions years ago to 1000 B.C. Numerous
mechanical and conceptual developments enabled counting and calculation. For
example, the word "calculate" comes from the Latin word for
pebble.
The most important development during this time period was not a thing but a
concept that life could be improved and advantage gained by recalling things,
remembering and using a set sequence of things and inventing a better sequence.
This is the original meaning of calculate, and is still used today when the
fictional literature refers to the phrase, "a calculating person."

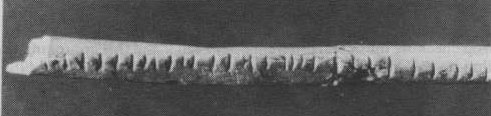

35,00-30,000 BC. Lebombo Bone, oldest known mathematical artifact, is a kind of tally stick with counting notches, a baboon’s fibula that was found in the Lebombo mountains located between South Africa and Swaziland; need evidence of the museum that houses it; tally stick wolf bone in Morasvaske' Museum in Czechoslovakia [Flegg, G. (2012). Numbers: Their History and Meaning]

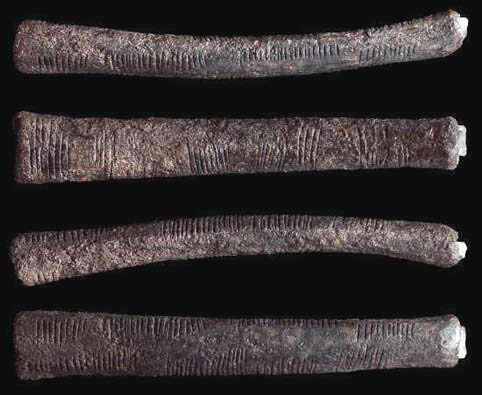

20,000 BC. The Ishango Bone, a baboon's fibula discovered in the 1970's, was a counting system, a list of prime numbers and even gives evidence of a multiplication table, on exhibit at the Royal Belgian Institute of Natural Sciences. Ishango is a town that is about 15 miles from the equator along the edge of Edward Lake in the Congo. [Flegg, G. (2012). Numbers: Their History and Meaning]

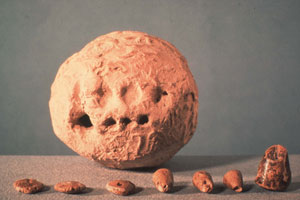

9,000 BC. Clay tokens, which could be given different shapes to count different kinds of things such as types of animals, and come in a wide variety of shapes and types.
- 2400 BC to 300 BC.
(technology to support mathematics
begins)

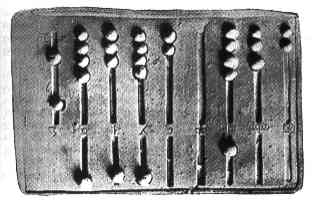

- The first known portable calculator was the abacus. Some claim it originated with the Chinese, but most scholars argue that it was invented by the Babylonians (Encyclopædia Britannica). The concept was first implemented with pebbles and sand or dust on a rock, hence its origins in the Phoenician word abak or sand. Of course if it was a windy day, you couldn't calculate the big figures. As the technology of that period improved, carrying a bag of pebbles, waiting for the right weather, then finding a nice pile of dust or sand and then placing a design on it was no longer necessary. The early Roman abacus (picture) to the right created a permanent sand pile grid, the clay tablet. This development led to something better to deal with the problem of easy to lose and displace pebbles. This tablet technology was improved on by putting the pebbles on a string or rod. This design put a number of thinking functions into one highly portable device where they could not get lost and made it easy to quickly move things to the beginning of the sequence. This was the first handheld computer. See thousands of images of different abacus models using Google image search for abacus or try out a simulation of one design of an abacus.
- 80 BC: the Antikythera mechanism, designed by Greek engineers, was the first known functioning analog computer that perhaps calculated the positions of the stars and planets (Google images)
- 1500s AD: Leonardo da Vinci's designs a Mechanical Calculator (picture
;
Google
images)
-
1600s: John Napier creates Napiers Bones (multiplication tables
on wood or paper) and logarithms. (picture)
-
1621: William Oughtred invents the slide rule, an early analog computer
(picture
; Google
images).
-
1642: Blaise Pascal, a French mathematician and philosopher, invents
the first operating model of mechanical digital calculator using gears,
called the Arithmetic Machine. It used addition to subtract, multiple and
divide (picture).
-
1665: Robert Hooke writes in Micrographia of how our use of eye glasses
suggests extensions for all senses
(technology conceived to support sense of sight extended to all senses)
-
1804: Joseph Marie Jacquard used punch cards to automate a weaving
loom (pictures
; Google
images).
-
1812: Charles P. Babbage, the "father of the computer", discovered
that many long calculations involved many similar, repeated operations.
Therefore, he designed a machine, the difference engine which would be
steam powered, fully automatic and commanded by a fixed instruction program.
In 1833, Babbage quit working on this machine to concentrate on the analytical
engine (picture
; Google
images).
-
1840s: Augusta Ada is known as "the first programmer" because she
suggested that a binary system should be used for storage rather than a
decimal system for Babbage's designs (Google
images).
-
1850s: George Boole developed Boolean logic which would later become
significant to the design of computer circuitry and as a method for refining
the searching of information (Google
images).
-
1874: first commercial typewriter was released in 1874, having been
patented in 1867 (Google
images).
- 1890: Hollerith's tabulator
- 1890: Dr. Herman Hollerith introduced the first electromechanical, punched-card data-processing machine which was used to compile information for the 1890 U.S. census. Hollerith's tabulator became so successful that he started his own business to market it. His company would eventually become International Business Machines (IBM). (picture ; Google images) (this paper based machine represents the origin of computer database software)
-
1906: Lee De Forest invents the vacuum tube which is used as an
early form of computer memory holding the values of zero and one by being
on or off (picture
; Google
pictures).
-
1910: first commercial implementation of teletype or teleprinters,
between New York City and Boston (pictures;
Google
pictures)
-
1939: Dr. John V. Atanasoff and his graduate assistant Clifford
Berry build the first electronic digital computer (Google
images).
-
1940: The first example of remote computing, using a teleprinter
to reach across a telephone line to a computer in New Hampshire which returned
answers to New York. The teleprinter is not a computer but connects with
and displays interactions with the computer. (picture
; Google
images).
-
1941: Konrad Zuse from Germany, introduced the first programmable
computer which solved complex engineering equations. This machine, called
the Z3, was also the first to work on the binary system instead of the
decimal system. (Google
images)
-
1947: The giant ENIAC (Electrical Numerical Integrator and Calculator)
machine was developed by John W. Mauchly and J. Presper Eckert, Jr. at
the University of Pennsylvania. It used 18,000 vacuum tubes, punch-card
input, weighed thirty tons and occupied a thirty-by-fifty-foot space. It
was only programmable by changing the wiring, not through software changes,
but was productive from 1946 to 1955 and was used to compute artillery
firing tables. (Google
images)
-
1947: William Shockley, John Bardeen and Walter Brattain of Bell
Labs invented the transistor. In the next decade, vacuum tubes will be
replaced by transistors for which they will receive the Nobel Prize in
physics in 1956. (images
; Google
images)
